VSS

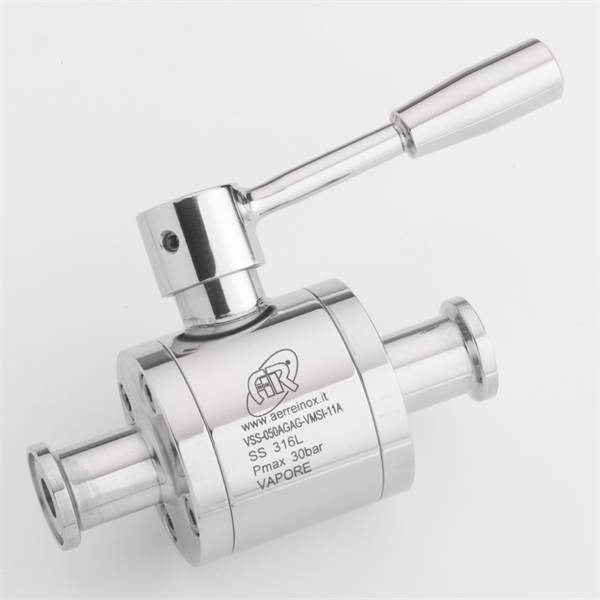

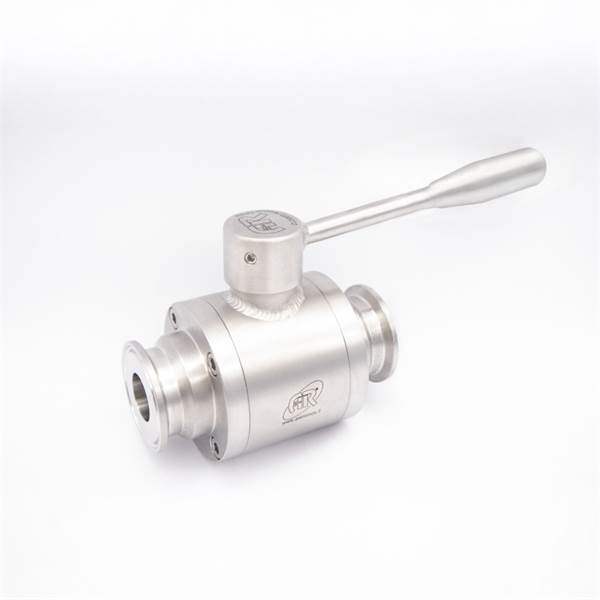

The VSS high purity ball valves are engineered to be a true process piping component, suitable for intercepting pure steam and pharmaceutical fluids under pressure.
These three pieces ball valves are machined from solid round bar in AISI 316L , with ball enclosed in two integral modified PTFE sealing seats , providing quality and reliability into your process.
Thanks to their full bore design, the VSS ball valves minimize the flow turbolence and pressure drop.
- Hygienic design
- High flow rate through an unobstructed flow path
- Quick, quarter-turn operation

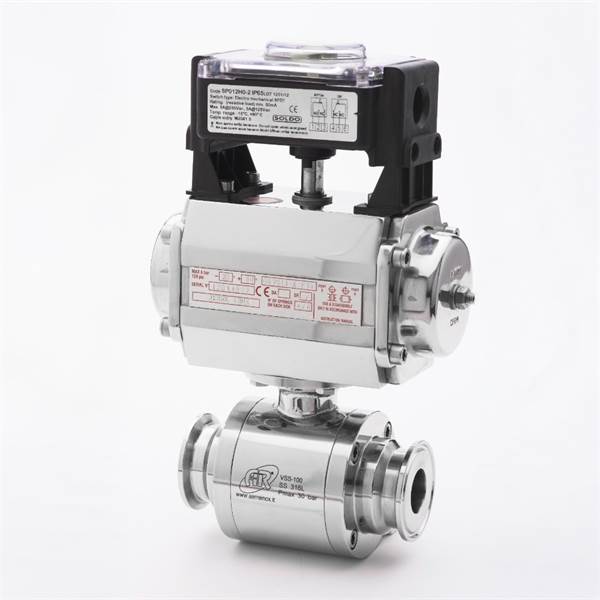

- Easy to automate pneumatically
- Wide range of applications
- Simple and fast maintainance
- Certified materials for Pharmaceutical use
- Full traceability
Designed for meeting the requirements of the plants in the Pharmaceutical, Food & Beverage, Cosmetics, Dairy, Fine Chemicals industries.
The high purity design is completed by the heads assembled by means of hidden screws, the stainless steel handle, and the internal and external surface finishing.
| Size range | ½” - 3/4” - 1” - 1” ½ - 2” - 2” ½ - 3” - 4” |
| End connections | Tri-Clamp or butt weld dimensionally according to ASME BPE |
| Stainless steel in contact parts Material | AISI 316L - 1.4404 |
| Seat Material | Modified PTFE |
| O-Ring Material | FKM (standard) - EPDM - SILICONE - FFKM |
| Internal surface finish | Ra ≤ 0.5μm |
| Working temperature rating (common use)* |
0°C ÷ 150°C (Only for sterilization or short time) |
| Working pressure rating (common use)* |
From 1/2” to 2” 1/2 : Vacuum ÷ 30 barg 3” and 4” : Vacuum ÷ 10 barg |
| Working conditions (continuous steam)* |
1/2” - 3/4” - 3” - 4” : Max 5 barg Max 159°C ( VSS standard version) 1” - 1”1/2 - 2” - 2” 1/2 : Max 5 barg Max 159°C ( VSV version, dedicated seats) |
| Certifications | 3.1 material certificates (in contact) according to UNI EN 10204 FDA USP Class VI ATEX |
