Hover to ZoomSLL

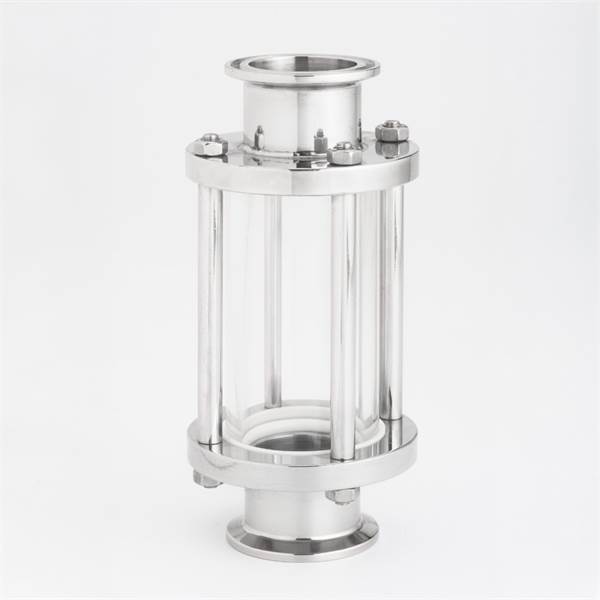

This full view model offers a clear process visibility, available with or without protection grid. It can be installed in any position to observe fluid flow and it can be clamp connected or welded onto a piping system. Suitable for installation on process lines of Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals plants.
Operating limits :
- Max Working Pressure: 6 barg
- Max Working Temperature: 150°C
- Marking: Each SLL/SLP In-line sight glass is marked with serial number for full lot traceability
- Tri-Clamp Connections: according to ASME BPE
- Wetted stainless steel parts: AISI 316L - 1.4404
- Glass Material: Borosilicate
- Gaskets: Silicone (X) Optional: Modified PTFE (T)
- Protection grid: AISI 304
- Internal Surface Finish: Ra ≤ 0.5µm code 11 e.g.: SLL-100AJAJ-X-11A
- Optional: Ra ≤ 0.5μm + Electropolish code 51 e.g.: SLL-100AJAJ-X-51A
