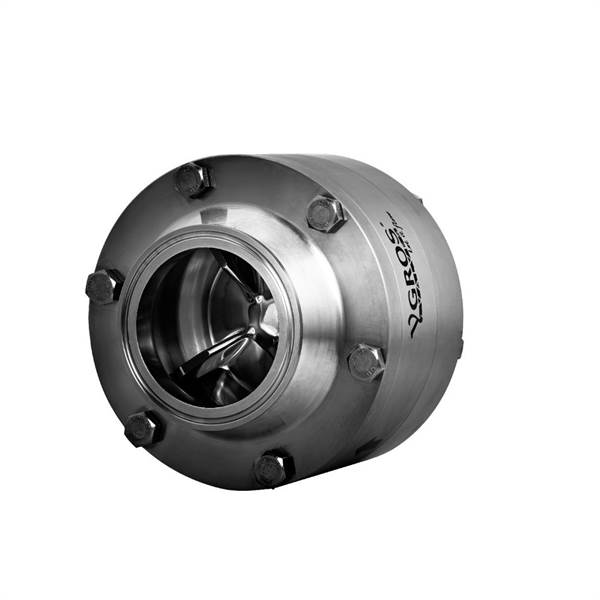

Hover to ZoomEDF VALVOLA
The EDF (External Drainable Flush) valve is a bottom-mounted hygienic valve designed for direct installation on process tanks. Its compact, angled body ensures complete drainability and minimizes dead space, making it ideal for sterile and clean-in-place (CIP/SIP) applications in pharmaceutical, biotech, food, and cosmetics industries.
- Product contact materials: A) Body & Flanges: Stainless steel 1.4404 (AISI 316L) B) Shutter: (Duplex) – 1.4410 (F53)
- Non product contact materials: Magnet: Neodymium
- Seals material options: EPDM, NBR, HNBR, VMQ (Silicone), FKM (Viton) FEP, PTFE
- Surface finishes: A) Internal: Ra µm ≤ 0.8 (standard) fino a Ra µm ≤ 0.4 electropolished and passivated (optional) B) External: Ra µm ≤ 3.2 (standard) fino a Ra µm ≤ 0.4 electropolished and passivated (optional)
- End connection options: A) WELDING: DIN 11850 / DIN 11851 / ASME BPE / ISO 1127 / SMS B) TRI-CLAMP: ASME-BPE / ISO 1127-2852 / SMS-2852 / DIN 32676 C) THREADED: DIN 405 Female / BSP 60° Male / BSP 60° Female
- Temperature range: A) -20°C/+150°C (Standard). B) Up to +220°C (optional)
- Operating pressure: A) PN16 (standard) B) Further operating pressures on request
- Media: Liquid, Gas, Steam
- Certifications (on request): A) MATERIAL: EN10204:2005 – 3.1 B) FDA: O-Ring C) Surface roughness D) ATEX E) PED F) EC 1935/2004
- Maximum hygiene : Only the shutter comes into contact with the product. There are no springs, discs or other components which could contaminate it, this means no contamination and no stagnation point.
- Safe closing : ensured by patented magnetic principle.
- Any installation position possible : it can be installed in horizontal, vertical up and down positions.
- Energy saving : its innovative working principle and design allow for a smooth flow, minimising pressure drop.
- Laminar flow : No turbulence.
- Maintenance-free : No need for regular servicing.
- Longer valve life : thanks to high chemical resistance of the materials.
