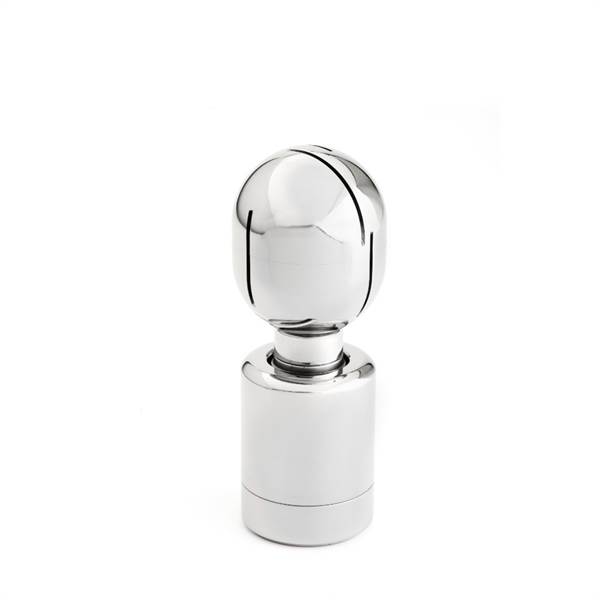

RSH

RSH series heads are completely made out of stainless steel, with the rotating sphere rolling on two ball bearing rows, to make operation possible in any position. Inner and outer surfaces are carefully machined, cleaned and polished to avoid contamination for bacterial growth. RSH heads are available with three different connections that is a female thread, a clip-on or a weld-on. Their robust and simple design, high quality construction, long trouble-free service and remarkable efficiency have made them very popular for general purpose applications, in thousands of applications all over the world.

  • Working pressure :  1 – 3 bar (14,5 – 43,5 PSI)
  • Recommended pressure :  2 bar (29 PSI)
  • Max working temperature :  95°C (203 °F)
  • Wetting radius :  max 4,6 mt (6,5 ft)
  • Impact cleaning radius :  max effective 1,4 mt (4 ft)
  • Lubricant :  self-lubricating with the cleaning fluid
  • Connections :  ½”, ¾”, 1”, 1”1/4 female thread clip-on or weld-on for pipe ASTM 270
