TKS

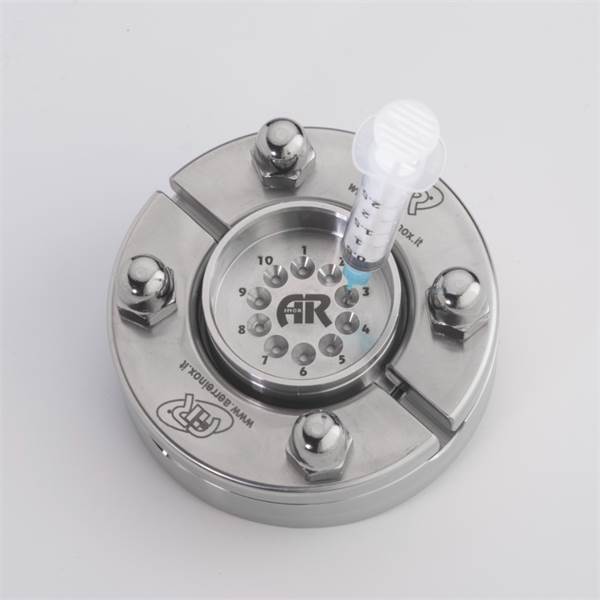

The TKS Syringe sampling device has a compact design that allows to take more samples of low viscosity products from a tank or a process line in the pharmaceutical sector with an hypodermic syringe. Once installed, the Silicone or EPDM membrane is flush positioned with the inner wall of the tank, minimizing the “Dead Leg”. Before to sampling, the port may be sterilized with alcohol and then sampling takes place by simply penetrating the special membrane with an hypodermic needle or a syringe, with minimum risk of contamination.
- Max pressure sample liquid: 6 barg
- Max sampling temperature: 95°C
- Not recommended for vacuum application.
- Please note that the sealing capacity is reduced with increased frequency of piercing, and the membranes ability to sustain pressure decreases. It is suggested the membrane replacement every production batch.
- Tri-Clamp Connection: 1” 1/2 according to ASME BPE

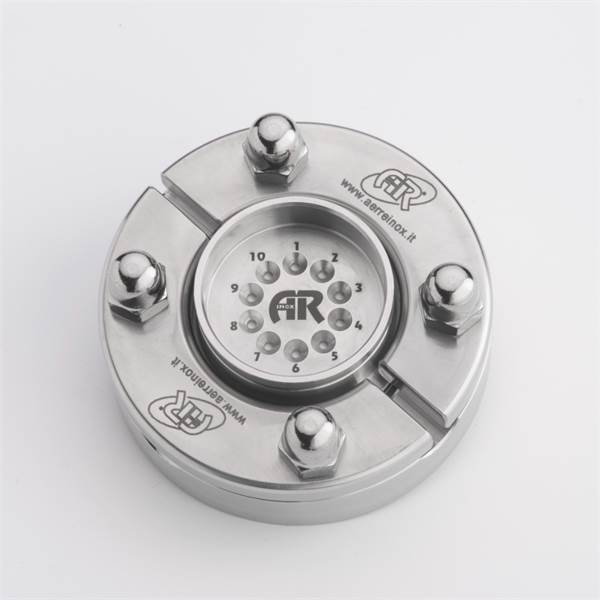

- Holes: n.10 Ø2mm
- Drilled Clamp Support Material: AISI 316L – 1.4404

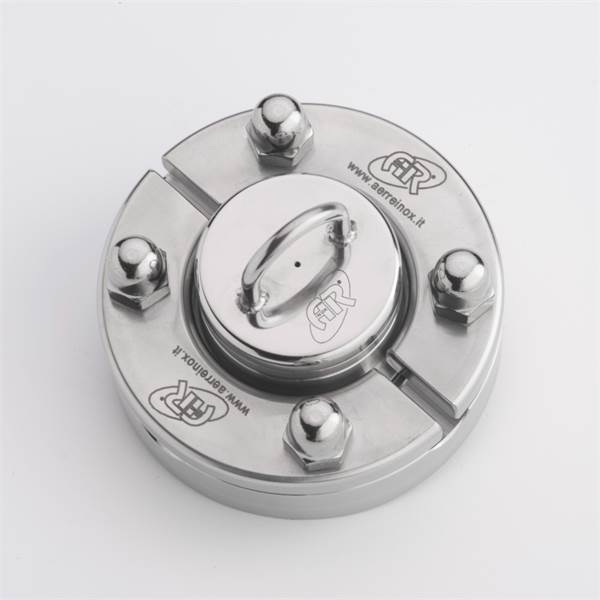

- Blind End Cap: AISI 316L – 1.4404
- Syringable gasket: A) White Silicone: complete device code TKS-AM-10X-14A, spare gasket code 40TK-X150-040. B) Black EPDM: complete device code TKS-AM-10E-14A, spare gasket code 40TK-E150-040.
