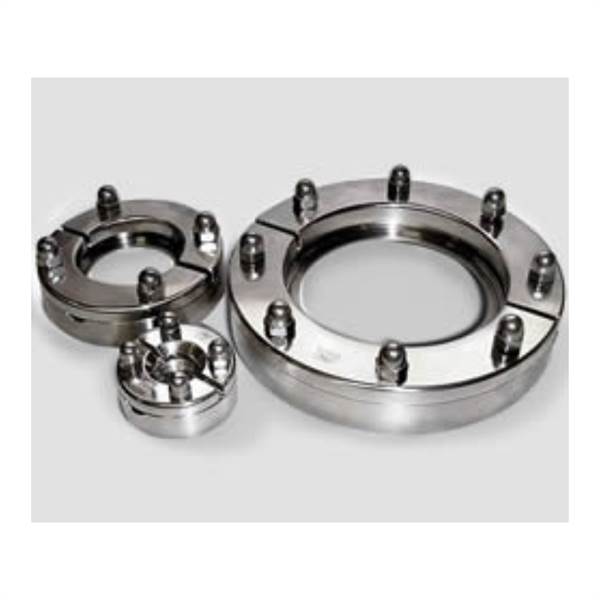

Sanitary Stainless Steel TK Connect
The TK Connect is a hygienic weld flange that allows for easy installation of many tank component accessories like tank sight glasses, lights, manometers, monitoring and sampling devices. The sanitary TK Connect tank component design welds flush with a tank's inner wall, allowing zero dead leg and thus minimizing bacteria traps. The stainless-steel TK Connect compact hygienic design also allows for better CIP/SIP. Tank component accessories can be easily removed for cleaning, and the TK Connect can be sealed with a standard blind cap.
- Eliminates deal leg
- No backteria traps
- Ensures quality of CIP/SIP procedures
- No air pockets during sterilization
- Flexible, fast and easy to mount various tank accessories
- Full material traceability
- PED 97/23/CE certified product
- Customized for your needs
- Locking Ring and Nuts : a two-piece design allowing for both safety and easy mounting of tank accessories.
- Weld-in-Flange : fully drainable, and designed in accordance with PED directive, and ASME norms. Available in different thicknesses complete with required bolts.
- ASTM A270 for pipe standard
- SMS 3008 for tube standard
- ISO 1127 series 1 for tube standard
- ASME BPE for material draining standards
- Tank sight glasses
- Lights
- Manometers
- Monitoring
- Sampling devices.
