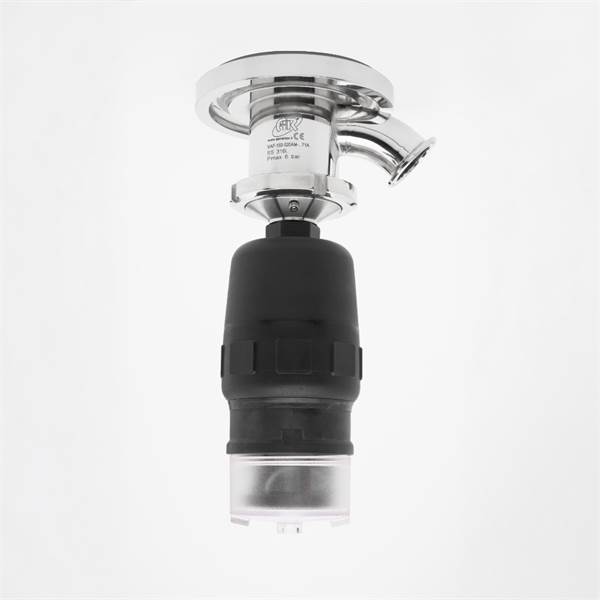

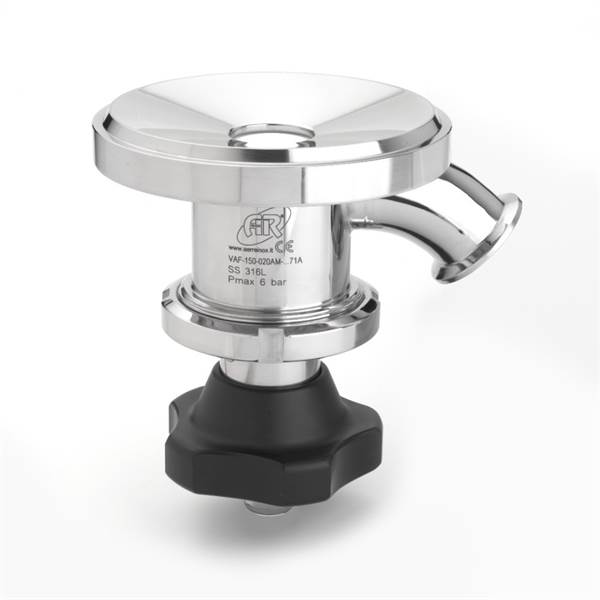

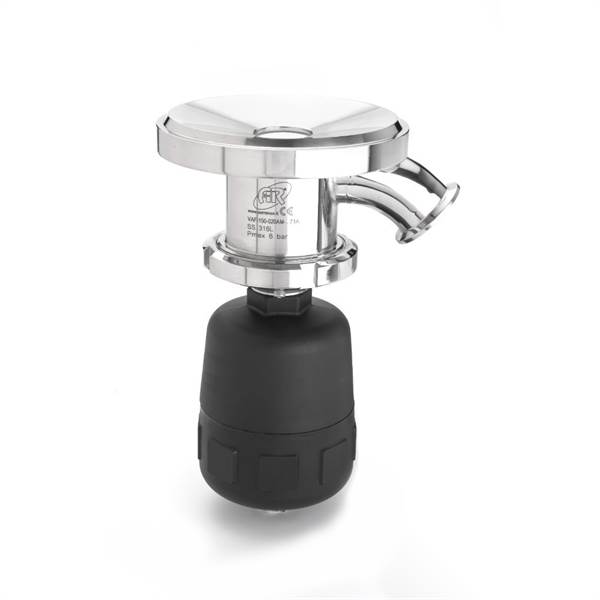

VAF
The welding pad of the body is conceived to be flush welded to the vessel bottom, resulting as an integral part of the tank surface, for preventing stagnation of the media. Designed to be completely cleanable and sterilizable. It also offers a wide range of optional and fully customizable according to project requirements.
- Smooth inlet cone open to the turbolence of mixing
- Minimized dead leg
- Compact body
- No product entrapment
- Minimized diaphragm’s stress, more reliability and lifespan
- Simple and fast maintenance
- Certified materials for Pharmaceutical use
- Full traceability
Designed for meeting the requirements of the tanks in the Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals industries. Our valves are suitable for direct installation on the bottom of tanks and preparation reactors for product discharge, with the best combination of hygienic design and flow optimization.
| Size range | 3/4” - 1” - 1 ½” - 2” - 3” - 4” - 6&rdquo |
| End connections | Tri-Clamp or butt weld dimensionally according to ASME BPE |
| Stainless steel in contact parts Material | AISI 316L - 1.4404 |
| Diaphragm Material | Modified PTFE Silicone (up to 2”) |
| Internal surface finish | From 3/4” to 2”: Vacuum ÷ 6 barg 3” and 4”: Vacuum ÷ 5 barg 6”: Vacuum ÷ 3.5 barg |
| Max working temperature | 150°C |
| Certifications | 3.1 material certificates (in contact) according to UNI EN 10204 FDA USP Class VI ATEX |
