VAT

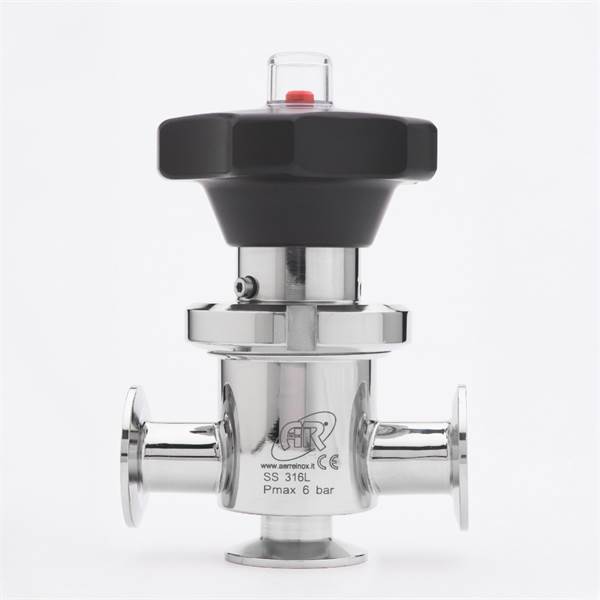

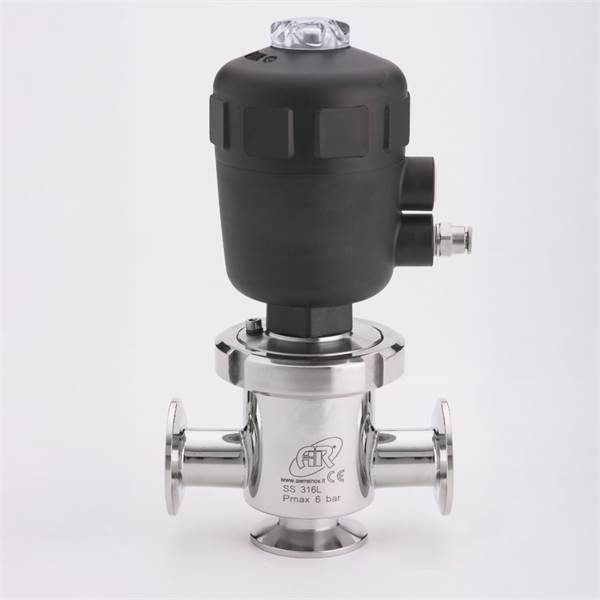

The In-line Aseptic Valves thanks to the engineered diaphragm avoid product entrapment in asymptotic area. The sealing surface is designed to be completely cleanable and sterilizable. The internal design of the body grants a complete drainability and the reduction of the Dead Leg to the minimum. It also offers a wide range of optional and fully customizable according to project requirements.
- Fully draining
- Minimized dead leg
- Compact body
- CIP/SIP cleanable/sterilizable
- No product entrapment
- Minimized diaphragm’s stress, more reliability and lifespan
- Simple and fast maintenance
- Certified materials for Pharmaceutical use
- Full traceability
In-Line Aseptic valves suitable for installation on the process lines of Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals plants. These valves are the ideal solution to intercept or direct the flow of sterile fluids.
| Size range | 3/4” - 1” - 1” ½ - 2” - 3” - 4” - 6” |
| End connections | Tri-Clamp or butt weld dimensionally according to ASME BPE |
| Stainless steel in contact parts Material | AISI 316L - 1.4404 |
| Diaphragm Material | Modified PTFE Silicone (up to 2”) |
| Internal surface finish | Ra ≤ 0.5μm |
| Working pressure rating | From 3/4” to 2” : Vacuum ÷ 6 barg 3” and 4” : Vacuum ÷ 5 barg 6” : Vacuum ÷ 3.5 barg |
| Max working temperature | 150°C |
| Certifications | 3.1 material certificates (in contact) according to UNI EN 10204 FDA USP Class VI ATEX |
