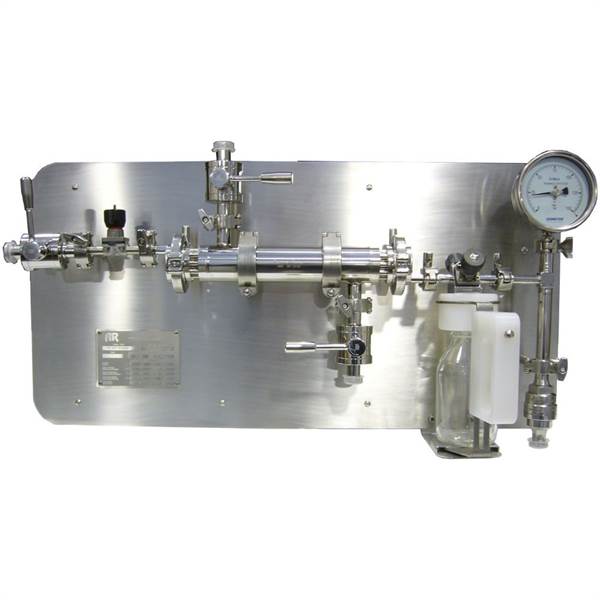

This PS-SC wall panel mounted is designed to allow Clean Steam (CS) and Water For Injection (WFI) samples to be taken quickly and easily whilst maintaining a sterile testing environment. This wall panel is ideal to be connect at the sampling point and can be operated with either mains or chilled water as the cooling medium. Availability of aseptic sample valve allow fine control of sample flow during testing The PS-SC can be sterilized in situ-on-line, thus ensuring continuity of samples regardless of testing frequency, ideal for fluids in pharmaceutical and purity systems applications.
- Aisi 316L – 1.4404 stainless steel construction, suitable for PS pure steam and WFI systems
- Self-draining design, eliminates possibility of sample retention
- Fully sterilizable in place (SIP)
- Wall panel mounted design
Materials :
- Tube, valves and fittings in AISI 316L – 1.4404
- flexible hose not included
- clamp gaskets in PTFE
Dimensions and weight :
- 800 x 400 x h max. 240 mm
- empty weight 000 kg. approx
Connections :
- Steam: ½” clamp BS 4825
- Cooling water: ¾” clamp BS 4825
Supply included :
- All valves and parts showed in picture /sketch
Available accessories :
- flexible hose Silicone Platinum Cured APSW-P for connection
Operating conditions :
- steam at 4 barg at 151°C
- cooling water at 6 barg
Capacities (approximate) :
- Steam: 10 kg/h of condensate at 100°C
- Water: 30 lt/h of water from 85°C to 30°C based on a cooling water temperature of 18°C and flow rate of 10 lt/min.
- Pure Steam sampling
- Point of use cooling / sampling
- In-line conductivity monitoring
