SLCD

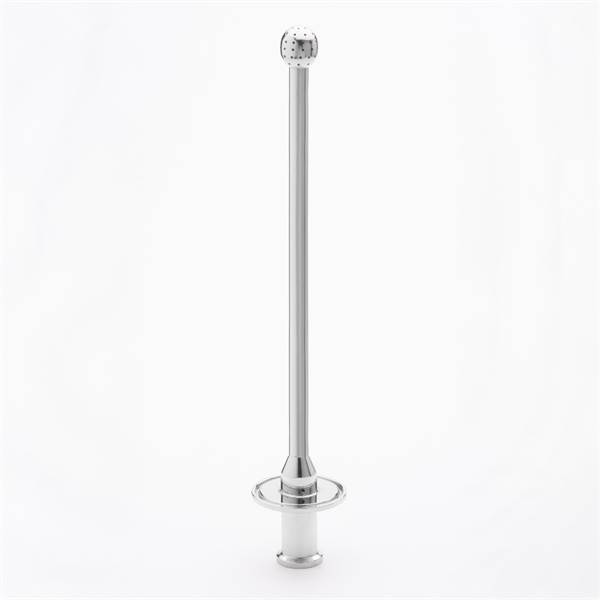

The fixed sprayballs are simple, efficient objects that can be easily cleaned. That's why they are applied to many tanks used in the food, beverage, chemical and pharmaceutical industry. They are particularly useful in small tanks and in processes where water-soluble liquids need to be eliminated. They are built using stainless steel AISI 316 and provide high quality surface finishing (either satinized or polished).

The sprayballs come in four different models: “A”, “B”, “C”, “D” and in different couplings, gas thread or clip.

• Sub-models “J” have smaller holes ( 1,6 ) and can be applied to types 1, 2, 3, 6, 7.
• Sub-models “X” have a “flat shoulder” in order to wash parallel to the base and can be applied to all types of balls, even creating “XJ” models

The ”X” models have the same measures and flow as the normal sprayballs.

Available couplings :

• female gas thread, clip 22x20, clip 28X 26, clip 32X30, clip 38X36, clip 40,5X38,5, clip 60,3 X52,8, clip 42.4x39.2

Sprayballs with diameter of 65, 50, 90 are 10/10 thick, those with diameter 120 are 12/10 thick, and those with diameter of 40 and 28 are 8/10 thick.
