RPS

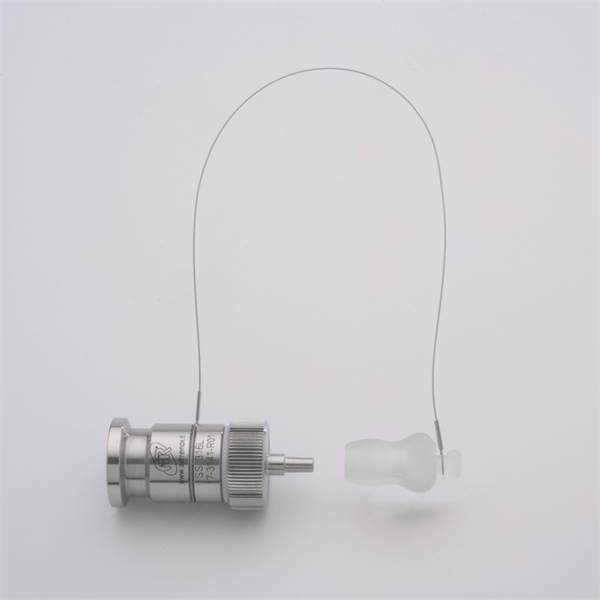

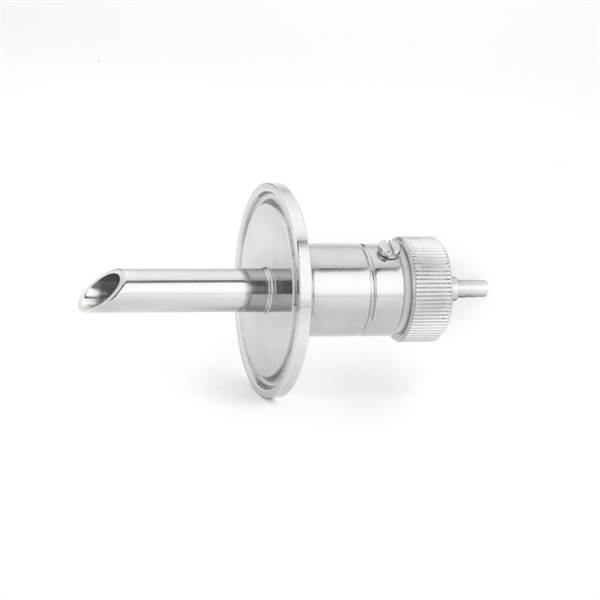

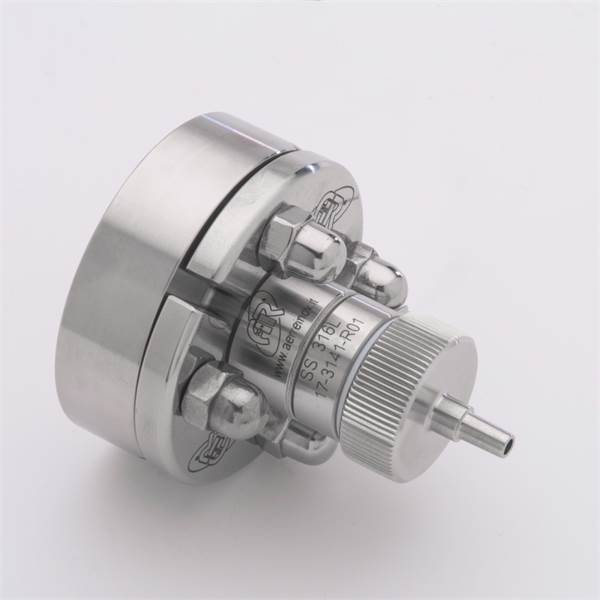

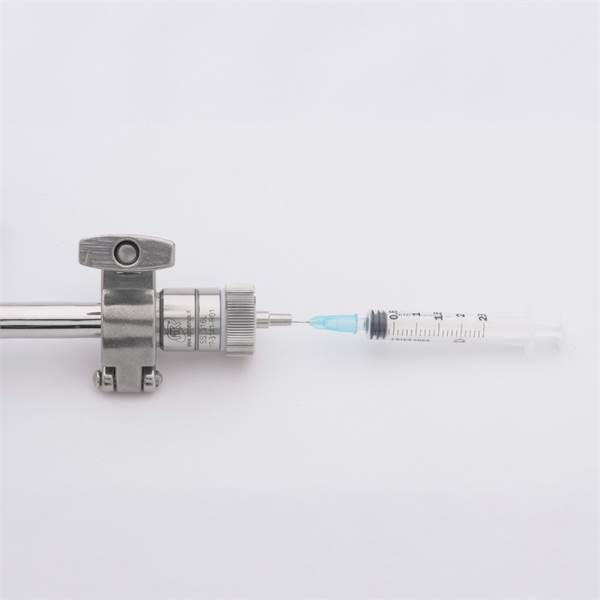

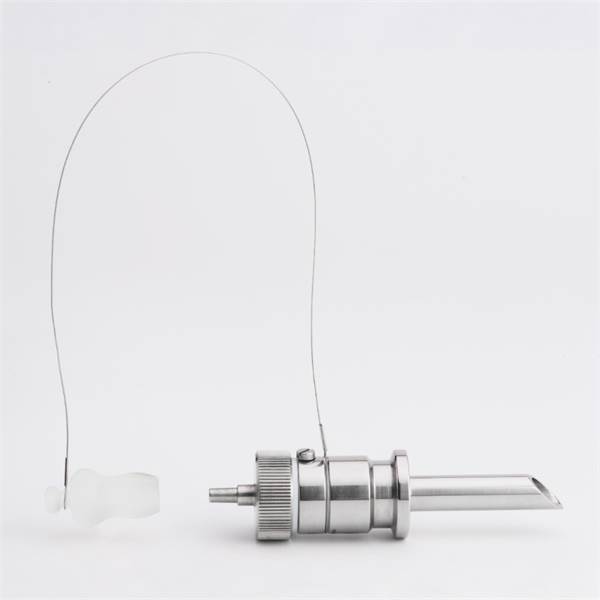

The RPS sanitary sampling valves are completely autoclavable, they allow for sampling at the center of the line, obtaining the desired representative sample. Inexpensive and easy to use, these sampling valves in AISI 316L can be installed on distribution loops or tanks, they are available with CLAMP, butt weld or gas threaded connections. The inlet connection is available with flat face or with insertion tube.
- Can be sanitized in-line
- Autoclavable
- Easy to use and reliable
- High temperature and pressure resistant
- With removable dust protective cap
- Full material traceability
- Certified materials for Pharmaceutical use
Sanitary sampling valves suitable for installation on the tanks or process lines of Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals plants. These valves are the ideal solution to take a true rapresentative sample of liquids.
| Size range | 1/2" - 3/4” - 1” - 1” ½ - 2” - 2" ½ - 3” - 4” |
| Stainless steel in contact parts Material | AISI 316L - 1.4404 |
| Plug Material | Modified PTFE - Silicone - FKM |
| O-ring Material | Silicone - FKM - EPDM |
| Internal surface finish | Average Ra ≤ 0.76μm - Inlet clamp surface Ra ≤ 0.38μm |
| Working pressure rating | Vacuum ÷ 10 barg |
| Max working temperature | 150°C |
| Certifications | 3.1 material certificates (in contact) according to UNI EN 10204 FDA USP Class VI ATEX |
