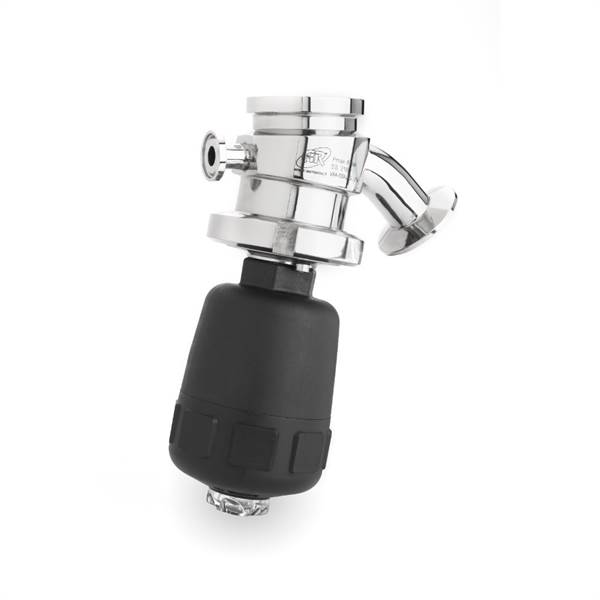

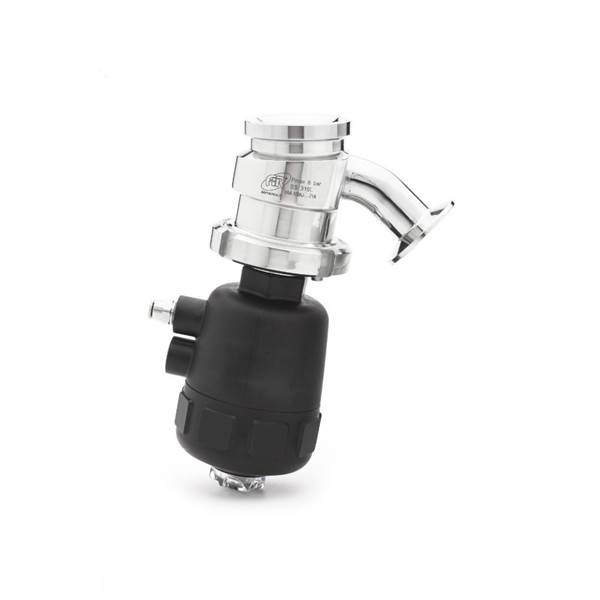

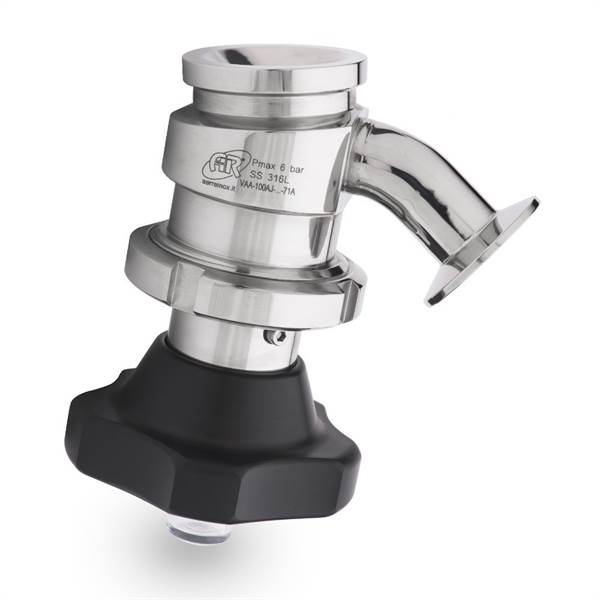

VAA

The 10º vertical angle enhances drainability while minimizing the internal cavity within the tank. The welding pad of the body is conceived to be as compact as possible and flush welded to the vessel bottom, resulting as an integral part of the tank surface, for preventing stagnation of the media. Designed to be completely cleanable and sterilizable. It also offers a wide range of optional features and is fully customizable according to project requirements.

Request for Quote
  • Fully draining
  • Minimized dead leg
  • Compact body
  • Small welding pad
  • CIP/SIP cleanable/sterilizable
  • No product entrapment
  • Minimized diaphragm’s stress, more reliability and lifespan
  • Simple and fast maintenance
  • Certified materials for Pharmaceutical use
  • Full traceability

Designed for meeting the requirements of the tanks in the Pharmaceutical, Food & Beverage, Cosmetics, Dairy, and Fine Chemicals industries. Our valves are suitable for direct installation on the bottom of tanks and preparation reactors for product discharge, with the best combination of hygienic design and flow optimization.

  • Size range: 3/4” - 1” - 1” ½ - 2” - 3” - 4” - 6”
  • End connections: Tri-Clamp or butt weld dimensionally according to ASME BPE
  • Stainless steel in contact parts Material: AISI 316L - 1.4404
  • Diaphragm Material: Modified PTFE Silicone (up to 2”)
  • Internal surface finish: Ra ≤ 0.5μm
  • Working pressure rating: A) From 3/4” to 2”: Vacuum ÷ 6 barg B) 3” and 4”: Vacuum ÷ 5 barg C) 6”: Vacuum ÷ 3.5 barg
  • Max working temperature: 150°C
  • Certifications: A) 3.1 material certificates (in contact) according to UNI EN 10204 B) FDA C) USP Class VI D) ATEX
