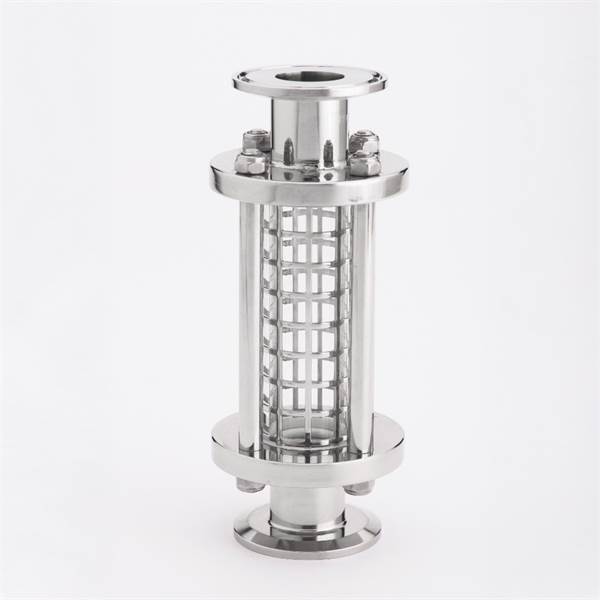

SLP Inline Sight Glass
This full view model offers clear process visibility, available with or without protection grid. The inline sight glass can be installed in any position to observe fluid flow and can be clamp connected or welded onto a piping system. This inline flow sight glass is suitable for installation on process lines of Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals plants.
- Clear process visibility
- Fast and simple installation and maintenance
- Sterilizzable – Autoclavable
- Full in contact material traceability
- Suitable for sterile applications
- Max Working Pressure : 6 barg
- Max Working Temperature : 150°C
- Marking : Each SLL/SLP In-line sight glass is marked with serial number for full lot traceability
- Tri-Clamp Connections : according to ASME BPE
- Wetted stainless steel parts : AISI 316L - 1.4404
- Glass Material : Borosilicate
- Gaskets : Silicone (X) Optional: Modified PTFE (T)
- Protection grid : AISI 304
- Internal Surface Finish : Ra ≤ 0.5µm--> code 11 e.g.: SLL-100AJAJ-X-11A
- Optional : Ra ≤ 0.5μm + Electropolish--> code 51 e.g.: SLL-100AJAJ-X-51A
