Hover to ZoomPSSCT

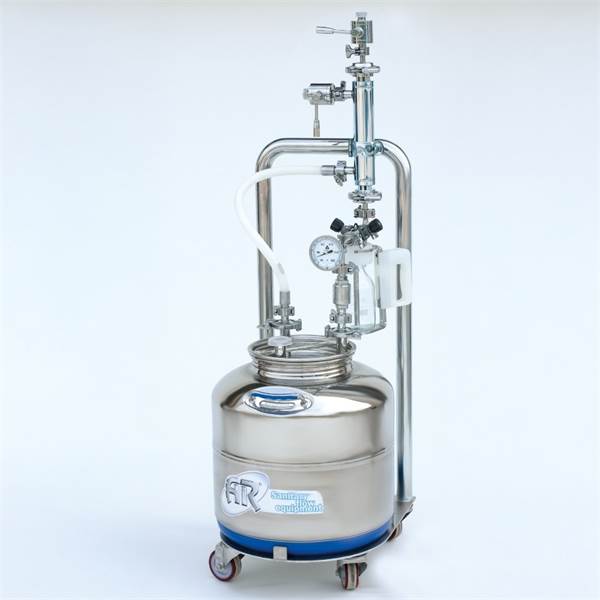

This PS-SC trolley mounted is designed to allow Clean Steam (CS) and Water For Injection (WFI) samples to be taken quickly and easly whilst mantaining a sterile testing environment. This trolley is ideal to be connect at the sampling point and can be operated with either mains or chilled water as the cooling medium. Availability of aseptic sample valve allow fine control of sample flow during testing The PS-SC can be sterilized in situ-on-line, thus ensuring continuity of samples regardless of testing frequency, ideal for fluids in pharmaceutical and purity systems applications.
- Aisi 316L – 1.4404 stainless steel construction, suitable for PS pure steam and WFI systems
- Self-draining design, eliminates possibility of sample retention
- Meets FDA and 3A specifications
- Fully sterilizable in place (SIP)
- Trolley mounted design – single unit can be used to take samples throughout a system
Materials :
- Tube, valves and fittings in AISI 316L – 1.4404
- flexible hose Silicone Platinum Cured APSW-P 4-ply, wire reinforced, mandrel-wrapped
- 50 lt. capacity waste tank in AISI 304
- clamp gaskets in PTFE
- handling trolley in AISI 304 with no.4 revolving wheels
Dimensions And Weight :
- 500 x 400 x h max. 1300 mm
- empty weight 000 kg. approx
Connections :
- Steam: ½” clamp BS 4825
- Cooling water: ¾” clamp BS 4825
Supply Included :
- no. 2 flexible hose Silicone Platinum Cured APSW-P
- 4-ply, wire reinforced, mandrel-wrapped ¾” clamp
- 12 ft. length for pure steam and cooling water connections
Available Accessories :
- no.1 Steam inlet sanitary ball valve ½” clamp (2)
- no.2 Cooling water inlet and drain ball valve ¾” clamp (4-5)
- Pure Steam sampling
- Point of use cooling / sampling
- In-line conductivity monitoring
