Hover to Zoom- Clear process visibility
- Fast and simple installation and maintenance
- Extremely compact design with large viewing area
Operating Conditions :
- Max Working Pressure: only for atmospheric process
Marking :

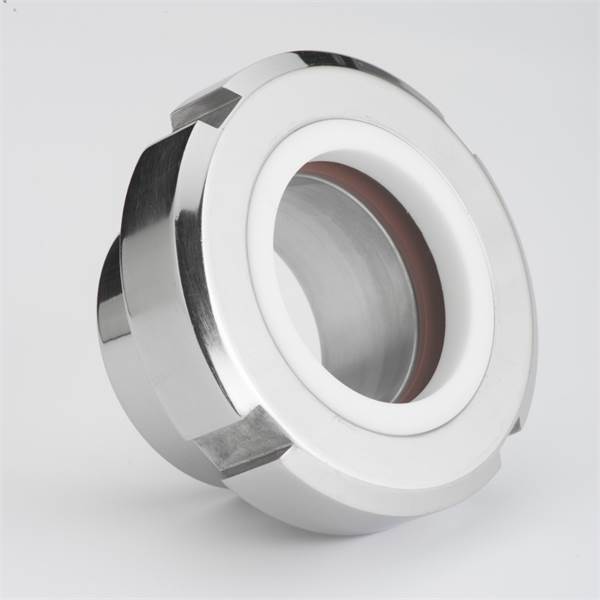

- Each SPD Flat sight glass is marked with serial number for full lot traceability
Materials and Specifications :
- DIN11851 male fitting: AISI 316L -1.4404
- DIN11851 nut: AISI 304
- Glass Material: Borosilicate
Gaskets :
- Seals 100°C: Silicone + Delrin Lens cushion gasket (X) - (standard)
- Seals 150°C: PTFE + PTFE Lens cushion gasket (G) - (optional)
Internal Surface Finish :
- Ra ≤ 0.76µm code 31 e.g.: SPD-100-X-31A
