Sampling Valves

The VPAK Series Aseptic Sampling Valves are designed for sterile and contamination-free sampling in pharmaceutical, biotech, and food & beverage applications. Engineered with a compact, hygienic design, these valves ensure reliable sampling under aseptic conditions. They are easy to sterilize (SIP/CIP compatible), minimize dead space, and offer customizable configurations for different process requirements.

Request for Quote

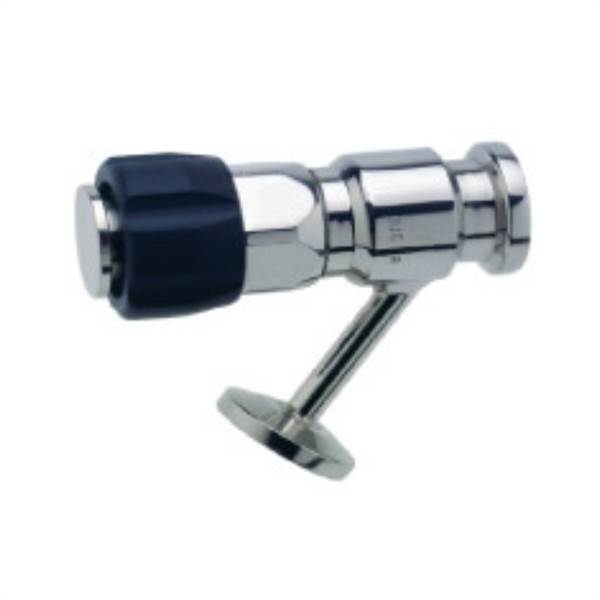

The Biotechnic Aseptic Sampling Valve VPAK features a radial diaphragm and a very compact design that allows for the valves installation in confined areas on sanitary vessels or product lines in pharmaceutical applications.

  • Radial Diaphragm (Silicone or Teflon)
  • Flush Mounted
  • CIP/ SIP
  • Easy Disassembly
  • Fully Autoclavable

MATERIALS OF CONSTRUCTION :

  • Body AISI 316L
  • Cover AISI 316L
  • Valve Stem AISI 316L
  • Valve cone AISI 316L
  • Radial Diaphragm – Silicone or PTFE
  • Spring AISI 304
  • Knob PTFE, autoclavable
  • Tube AISI 316L

OPERATING CONDITIONS :

  • Pressure = max. 10 bar
  • Temperature Range = -30°C to +150°C
  • Flow = max. 400 lt/hr @ (2 bar)

SURFACE FINISHES :

  • External Mirror Polish
  • Internal Mechanical Polish 240 Grit
