SLO

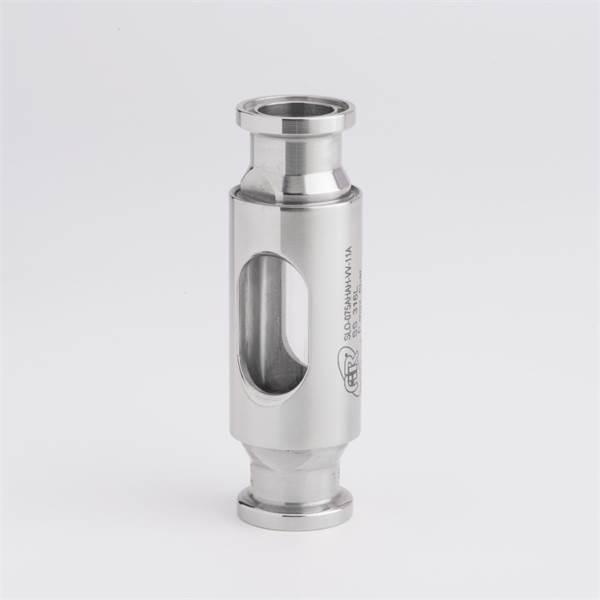

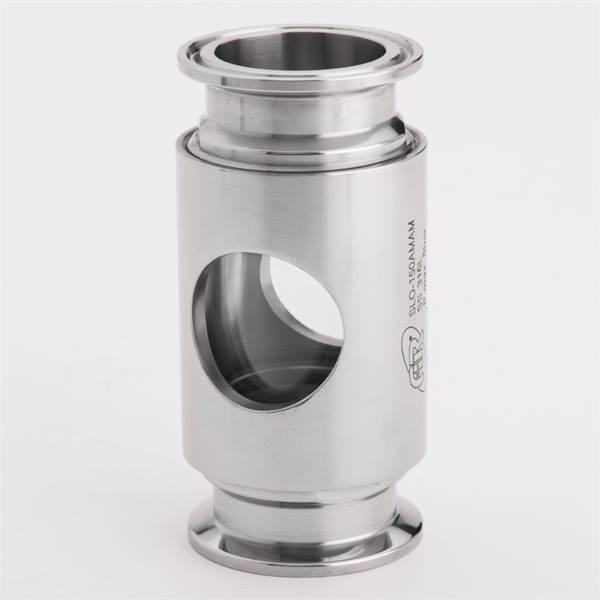

This see-through model has a compact double window design, suitable for a wide range of applications in high purity tubing systems. It can be installed in any position to observe fluid flow and most of all guaranteeing the highest level of purity. Can be clamp connected or welded onto a piping system to offer clear process visibility. Suitable for installation on process lines of Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals plants.

Request for Quote

Operating limits :

  • Max Working Pressure: 6 barg
  • Max Working Temperature: 150°C
  • Marking: Each SLO In-line sight glass is marked with serial number for full lot traceability.

Materials and Specifications :

  • Tri-Clamp Connections: according to ASME BPE
  • Wetted stainless steel parts: AISI 316L - 1.4404
  • Glass Material: Borosilicate
  • Body Housing Material: AISI 304
  • Wetted O-ring: FKM (V), Optional: EPDM (E), Silicone (X), FEP (F), FFKM (K)
  • Not Wetted O-ring: FKM (V), Optional: EPDM (E), Silicone (X)
  • Internal Surface Finish: Ra ≤ 0.5µm code 11 e.g.: SLO-050AGAG-VV-11A
  • Optional: Ra ≤ 0.5μm + Electropolish code 51 e.g.: SLO-050AGAG-VV-51A
