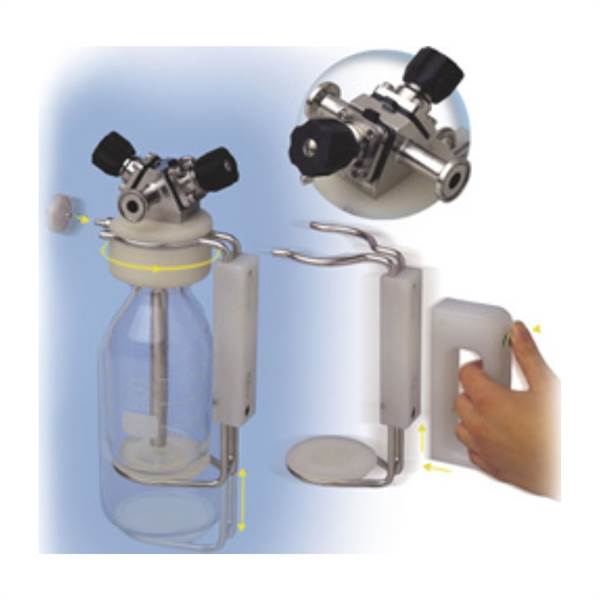

Sterile Bottle Assembly

Materials :

• Valve Body: 316L Stainless Steel
• Diaphragms: EPDM or TFM/EPDM (FDA and USP 23 Class VI compliant)
• O-Rings: EPDM, Viton, or PTFE encapsulated (FDA and USP 23 Class VI compliant)
• Bottle: Borosilicate Glass (100 ml – 1000 ml)
• Handle: 316L SS and Acetal (POM) – FDA

Available Connections :

• In-Out Ports: 1/2″ Sanitary Clamp
• Vent: 1/2″ Sanitary Clamp, 1/4″ Hose Barb, male luer-slip

Operating Data :

• Max Pressure: 3 bar (45 psi)
• Max Temperature: 150°C

Optional :

• Flexible hose assembly with 1/2″ connections
• Disposable vent filters
• 1/2″ Steam trap

Technical Data :

• Valve: Divert T Diaphragm Valve with manual or pneumatic actuation

Surface Finish :

• Meets BPE-1997 SFV6 surface requirements for mechanically polished and electropolished (MP/EP) valves, 20 µ-in / 0.8 µ-m Ra.

The SPC Sterile Sampling Bottle Assembly allows the capturing and handling of liquid sterile product samples.
