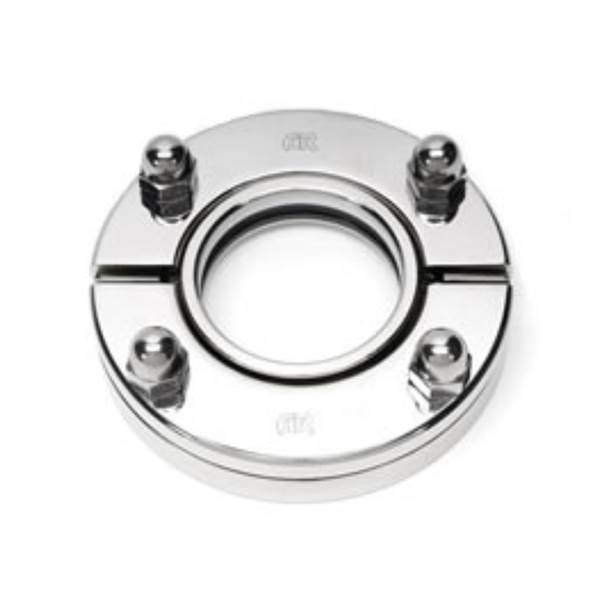

Sight Glass with TK Connect

Put a window in your processing systems with the Sanitary TK- SIGHT GLASS

Designed to fit the flush mount TK-Connection System to offer clear visibility to your process

Request for Quote
  • Flush Mounted
  • CIP/SIP
  • Easy disassembly
  • Fully autoclavable
  • No viewing restrictions
  • Eliminates the need for welding ferrules & clamps
  • Media Preparation

Operating conditions :

  • Design Pressure : -1bar to 10.3 barg (-14,5 psi to 150 psig)
  • Design temperature : -80°C to 1

Material :

  • Locking Ring : ASTM A 479 / ASTM A 182 – 316L
  • Lens Cover : AISI 316L stainless steel
  • Glass Lens : Borosilicate tempered glass to DIN 7080
  • Lens cushion gaskets : PTFE
  • Clamp gasket : Silicone, EPDM, Viton (optional)

Surface finish :

  • TK-Connection product contact surface: 15 – 20 Ra

Marking :

  • Each TK-Connection is marked with Heat No. for full lot traceability
  • Fast and simple installation and maintenance
  • Extremely compact construction
  • Eliminate dead leg
  • No product entrapment
  • No air pockets during sterilization
  • Special size available per drawing request
