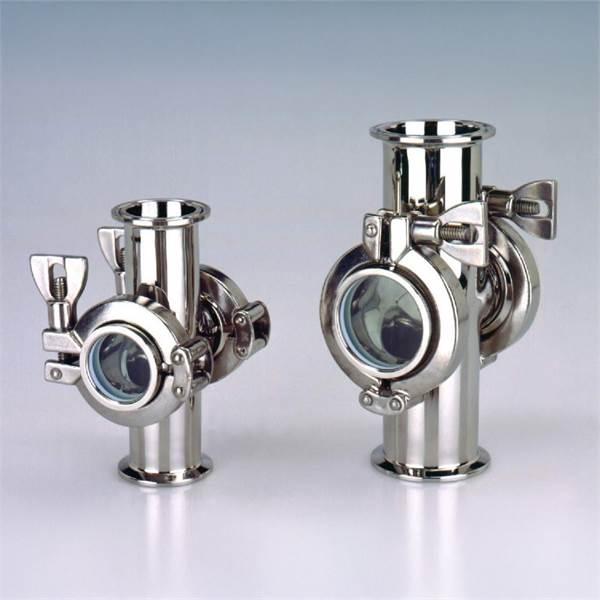

This see-through model has a compact double window design, suitable for a wide range of applications in high purity tubing systems. It can be installed in any position to observe fluid flow. Can be clamp connected or welded onto a piping system to offer clear process visibility. Suitable for installation on process lines of Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals plants.
- Clear process visibility
- Fast and simple installation and maintenance
- Sterilizzable – Autoclavable
- Full in contact material traceability
- Suitable for sterile applications
- Max Working Pressure: 6 barg
- Max Working Temperature: 150°C
- Marking: Each SLH In-line sight glass is marked with serial number for full lot traceability
- Tri-Clamp Connections: according to ASME BPE
- Wetted stainless steel parts: AISI 316L - 1.4404
- Glass Material: Borosilicate Tempered
- Cover Material: AISI 316L - 1.4404
- Clamp: AISI 304
- Clamp Gasket Material: Silicone (X) Optional: EPDM (E), FKM (V), PTFE (G)
- Glass Gasket Material: PTFE (G) Optional: Silicone (X)
- Internal Surface Finish: Ra ≤ 0.5µm code 71 e.g.: SLH-100-AJAJ-XG-71A
