VFF

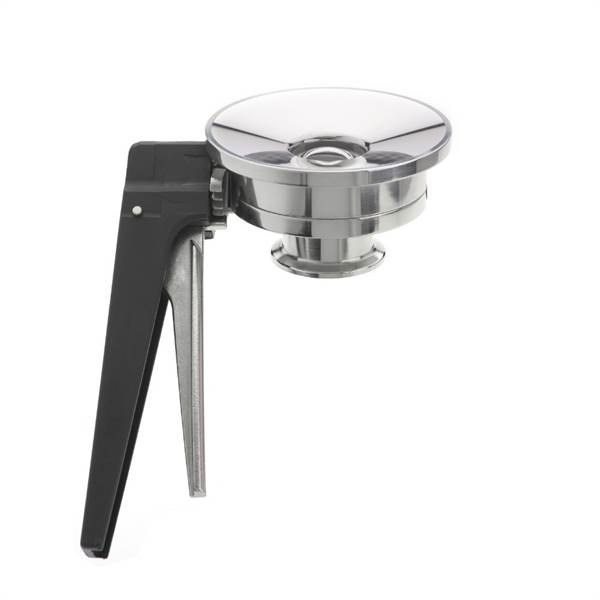

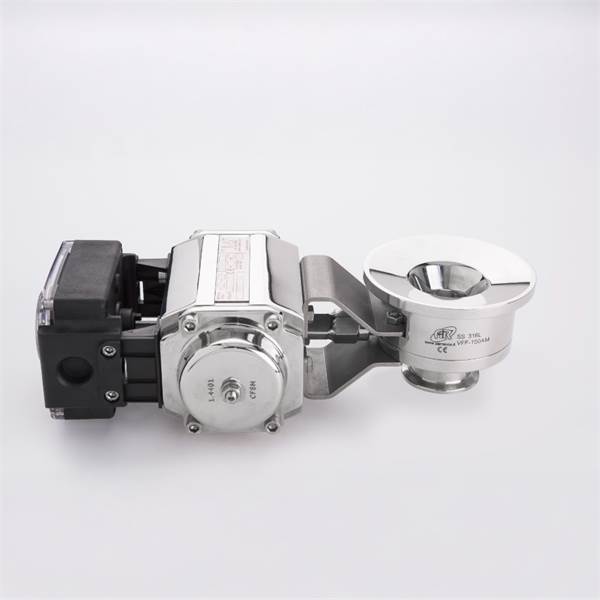

Tank bottom butterfly valve in stainless steel is designed to meet sanitary processing system requirements, acting as ON/OFF valve and available in manual or pneumatic operated versions. Composed of one head, a welding plate and a shutter disk enclosed in a seal gasket. Thanks to their internal design and the wide bore, they guarantee a gentle treatment of the product flow, a minimization of turbulence, contamination and a low pressure drop. The seal gasket is conceived to be flush to the internal passage, avoiding product entrapment.
- Hygienic design
- Low pressure drop and minimization of turbolence
- Easy to automate pneumatically
- Wide range of applications
- Simple and fast maintainance
- Certified materials for Pharmaceutical use
- Full traceability
- Designed for meeting the requirements of the plants in the Pharmaceutical, Food & Beverage, Cosmetics, Dairy, Fine Chemicals industries.
- The hygienic design is completed by the heads assembled by means of hidden screws and the internal and external surface finishing.
| Size range | From 1” up to 4” |
| End connections | Tri-Clamp or butt weld dimensionally according to ASME BPE |
| Stainless steel in contact parts Material | AISI 316L - 1.4404 |
| Seal Material | SILICONE (standard) - EPDM (‘till 2” included) - FKM |
| Internal surface finish | Ra ≤ 0.5μm |
| Working pressure rating | From 1” to 4” Vacuum ÷ 10 barg |
| Working temperature rating | 0°C ÷ 150°C (Only for sterilization or short time) |
| Certifications | 3.1 material certificates (in contact) according to UNI EN 10204 FDA USP Class VI ATEX |
