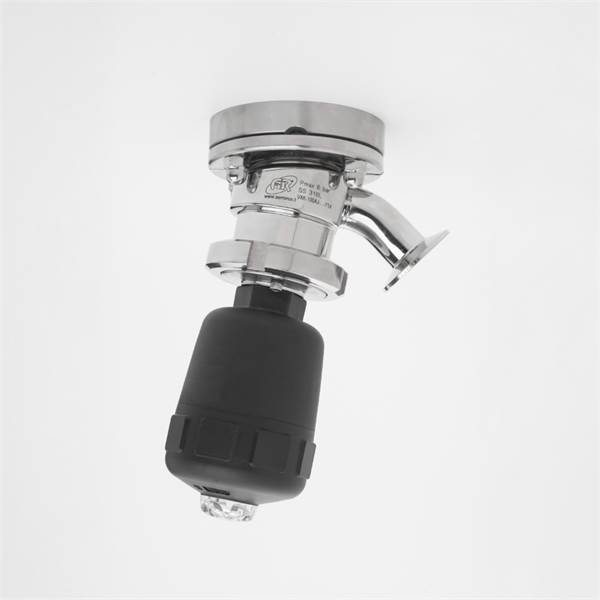

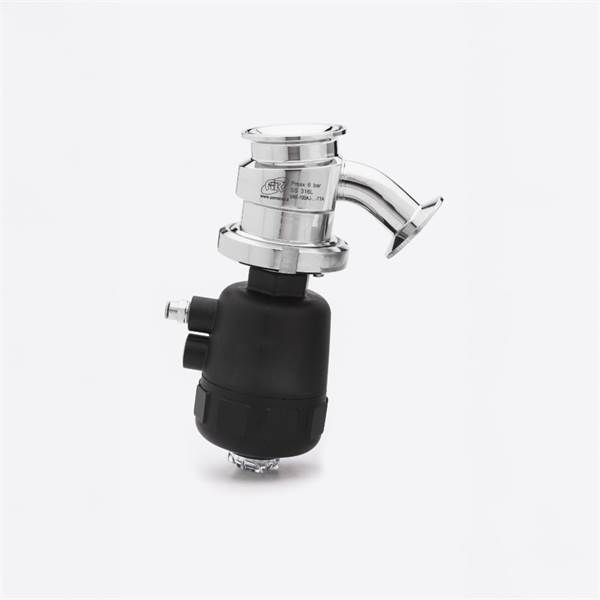

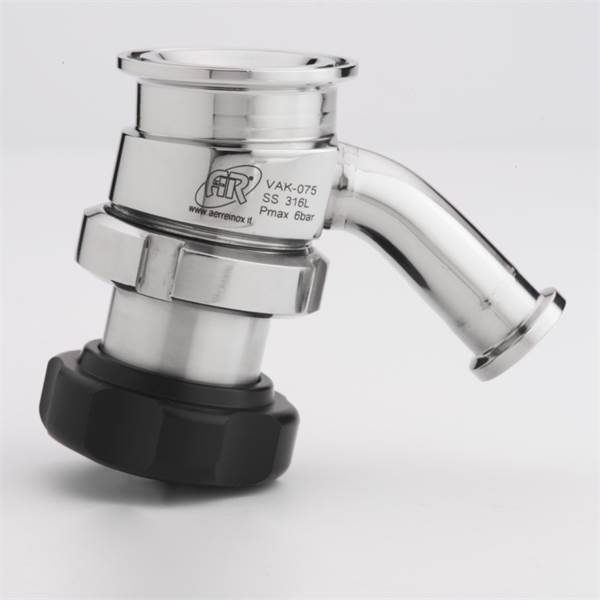

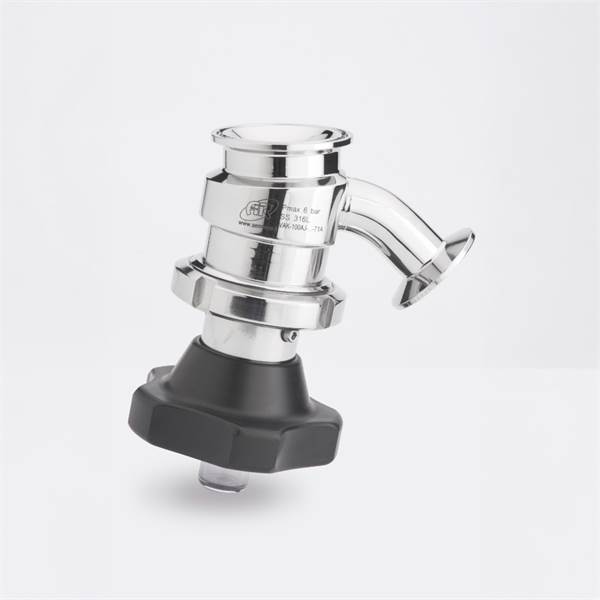

VAK
The 10º vertical angle enhances drainability, while the internal cavity within the tank is minimized owing to the possibility to assemble the valve on our TKC connection. This valve is a versatile solution thanks to its inlet clamp connection, which allows to remove the valve from the tank in an easy and fast way. Designed to be completely cleanable and sterilizable. It also offers a wide range of optional and fully customizable according to project requirements.
- Fully draining
- Minimized dead leg
- Compact body
- Removable solution
- CIP/SIP cleanable/sterilizable
- No product entrapment
- Minimized diaphragm’s stress, more reliability and lifespan
- Simple and fast maintenance
- Certified materials for Pharmaceutical use
- Full traceability
Designed for meeting the requirements of the tanks in the Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals industries. Our valves are suitable for direct installation on the bottom of tanks and preparation reactors for product discharge, with the best combination of hygienic design and flow optimization.
| Size range | 3/4” - 1” - 1 ½” - 2” - 3” - 4” - 6&rdquo |
| End connections | Tri-Clamp or butt weld dimensionally according to ASME BPE |
| Stainless steel in contact parts Material | AISI 316L - 1.4404 |
| Diaphragm Material | Modified PTFE Silicone (up to 2”) |
| Internal surface finish | From 3/4” to 2”: Vacuum ÷ 6 barg 3” and 4”: Vacuum ÷ 5 barg 6”: Vacuum ÷ 3.5 barg |
| Max working temperature | 150°C |
| Certifications | 3.1 material certificates (in contact) according to UNI EN 10204 FDA USP Class VI ATEX |
