Designed complying with FDA rules for pharmaceutical and biotechnology industries. The major advantage is that enables the total integrity of the tank. The transmission with magnetic torque avoids the occurrence of cross contamination between product and external environment, a typical problem of the use of devices with mechanical seals (shafts, seals and other equipment). Suitable for high viscosities, offers great flexibility. The bottom mounting allows to keep clear the tank from any other body, such as shafts from the top and baffles, thus easening vessel access, cleaning and maintenance.

Request for Quote

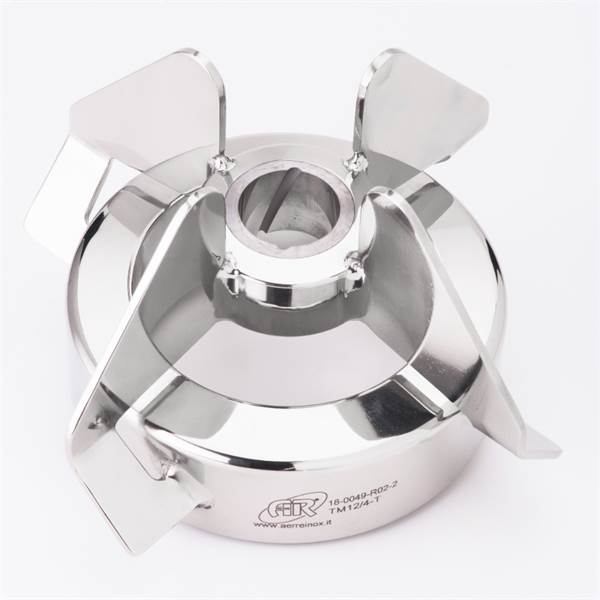

The geometry of the impeller allows an excellent axial pumping flow and very low shear rate for different applications (looking from the top, impeller always must rotate clockwise):

  • Mixing, dilution, maintaining in suspension…
  • Speed range 80 to 380 rpm using an inverter (*). Depending on the size of vessel and impeller-head, levels of agitation can change from vigorous to gentle.
  • Small volumes can be achieved.
  • All product contact parts are made in 1.4435 or 1.4404.

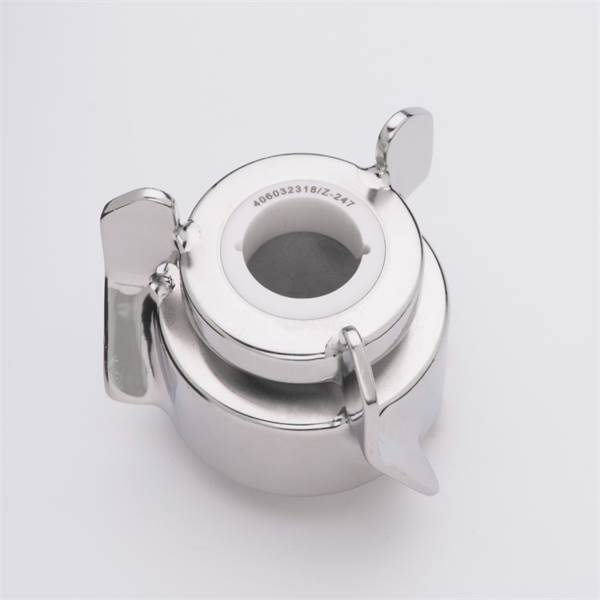

  • The impeller head runs on a special grade tungsten carbide that has been manufactured under controlled conditions to achieve the correct size, grain structure and hardness.
  • The blade shape and profile has been designed to optimize agitation levels and to direct a proportion of the cleaning fluid through the head

MATERIAL WETTED PARTS :

  • Welding plate: stainless steel AISI 316L- 1.4404 or 1.4435
  • Impeller: stainless steel AISI 316L- 1.4404 or 1.4435
  • Static bearing: tungsten Carbide
  • Dinamic bearing: tungsten Carbide
  • Disks / o-rings: FDA and USP Class VI

WELDING PLATE :

  • Surface roughness: Ra<0,5 micron or better, or + electropolishing
  • Design pressure: -1 to +10 bar(g)
  • Design temperature: -80 to +200°C
  • In compliance with: the welding plate is in compliance to PED Directive 2014/68/EU Category IV
  • Labelling: for full traceability purposes each welding plate is individually marked with item and heat No

MOTOR DATA :

  • Voltage: 230/400V AC– 50Hz and 460/480V AC– 60Hz
  • Number of poles: 2 except Atex execution which have 4 poles
  • Protection index: IP 55
  • Certified: CE/cCSAus, IEC, CEI/UNEL
  • Thermistor: 1 (PTC, 150°C)

OPTIONAL ACCESSORIES :

  • Speed sensor: a magnetic proximity sensor can be fitted onto weld plate to measure the rotation of the impeller
  • Sensor type: PNP, Voltage 24V DC, degree of protection IP67
  • Temperature range: -10 to +125°C
  • Bearings: Silicon Carbide, Zirconium Oxide
  • Extension: different lengths extensions available on request

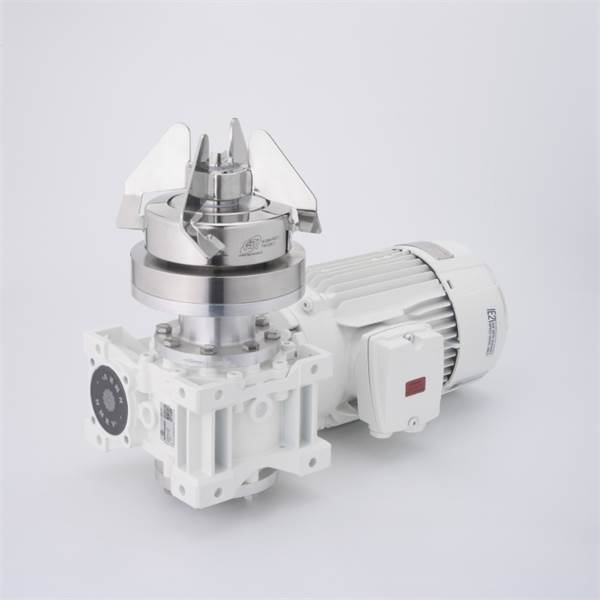

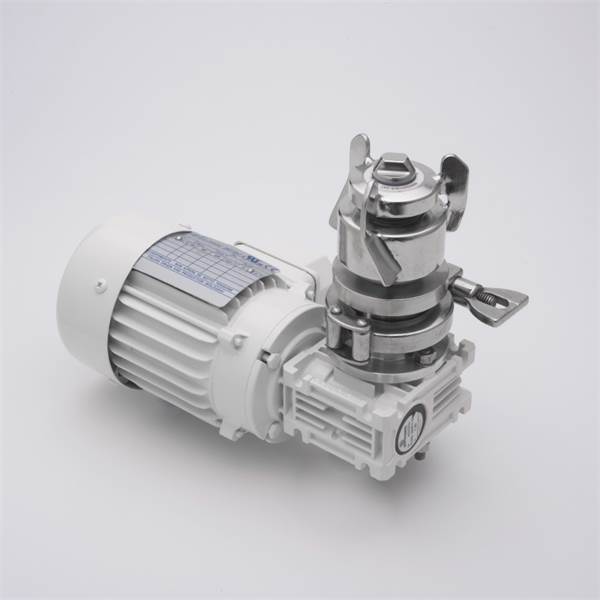

A machined pad is welded into the bottom of the vessel (usually offset respect to the central axis). This design allows to dismount the drive unit and to sterilize the tank in an autoclave, meanwhile the same drive unit can be installed and operated in another vessel. The impeller head is running by a drive unit externally mounted. Inside the impeller head there is a ring of special magnets encapsulated in a 316L ss housing. The blades are welded to this housing, creating an integral impeller head.
