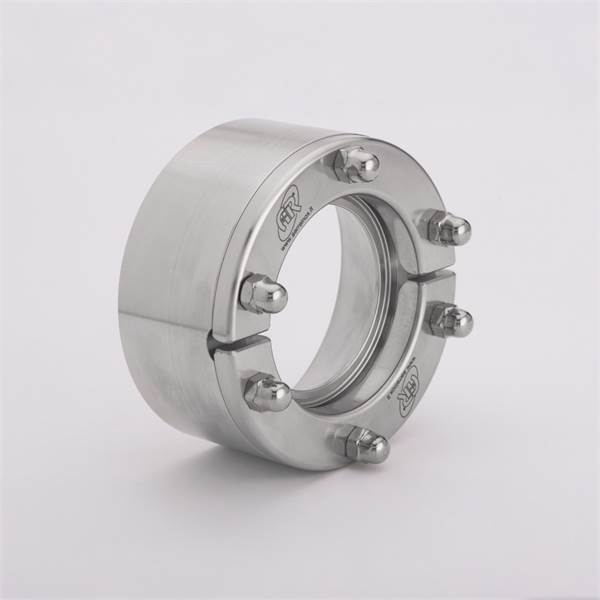

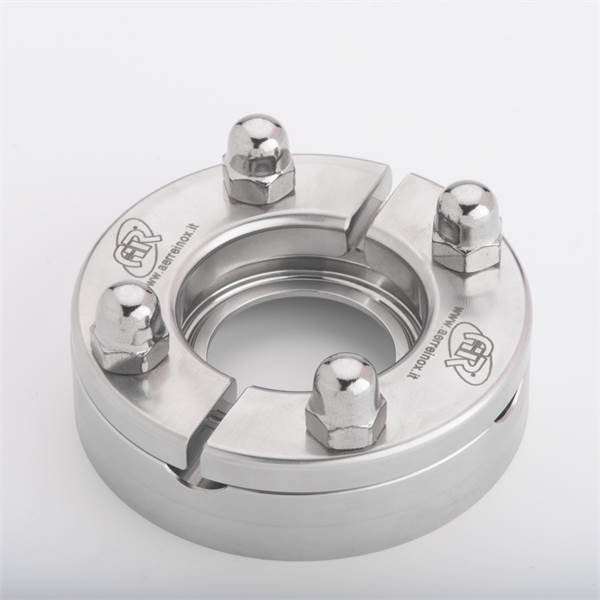

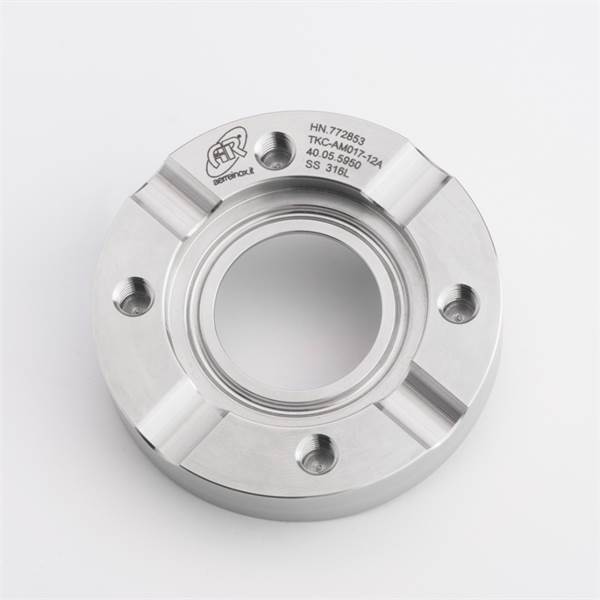

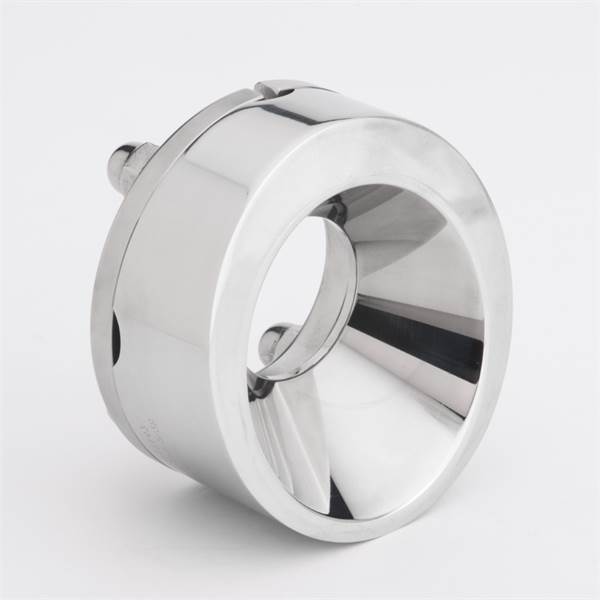

TKC stainless steel connections for tanks and sanitary plants in the pharmaceutical, biotechnological, cosmetic, food & beverage and chemical sectors.
TKC connections are an extremely versatile solution, having a compact design and allowing the installation of accessories and/or clamp valves on the top, bottom or side part of a tank. Once installed, the device on the TKC is flush with the tank internal wall, avoiding the typical dead leg of the standard clamp ferrule. To have the same result also on the process lines, the TK IN-LINE is the ideal solution, available with clamp or butt weld connections, allowing the installation of the instrumentation avoiding the "Dead Leg".
ASME BPE :
- Regulatory : designed according to PED 2014/68/EU directive, ASME VIII Div.2 and F.E.M. (Finite Element Method) calculated, approved and certified by notified body. (except sizes 8” - 10”)
- Design Pressure : 7 barg (101,5 psig) (except sizes 8” - 10”)
- Design Temperature : -80°C to 200°C (-112°F to 392°F) Note : The applied gasket (not included) may have different design temperature and/or pressure limits than the TKC. The weakest component in the assembled product determines the maximum design temperature and pressure limits.
- Marking : Each TKC Connection is marked with Heat No. for full lot traceability.
DIN 32676 :
- Regulatory : designed according to PED 2014/68/EU directive, ASME VIII Div.2 and F.E.M. (Finite Element Method) calculated, approved and certified by notified body.
- Design Pressure : 7 barg (101,5 psig)
- Design Temperature : -80°C to 200°C (-112°F to 392°F) Note : The applied gasket (not included) may have different design temperature and/or pressure limits than the TKC. The weakest component in the assembled product determines the maximum design temperature and pressure limits.
- Marking : Each TKC Connection is marked with serial number for full lot traceability.
ISO 2852 :
- Regulatory : designed according to PED 2014/68/EU directive, ASME VIII Div.2 and F.E.M. (Finite Element Method) calculated, approved and certified by notified body.
- Design Pressure : 7 barg (101,5 psig)
- Design Temperature : -80°C to 200°C (-112°F to 392°F) Note : The applied gasket (not included) may have different design temperature and/or pressure limits than the TKC. The weakest component in the assembled product determines the maximum design temperature and pressure limits.
- Marking : Each TKC Connection is marked with serial number for full lot traceability.
SMS 3008 :
- Regulatory : designed according to PED 2014/68/EU directive, ASME VIII Div.2 and F.E.M. (Finite Element Method) calculated, approved and certified by notified body.
- Design Pressure : 7 barg (101,5 psig)
- Design Temperature : -80°C to 200°C (-112°F to 392°F) Note : The applied gasket (not included) may have different design temperature and/or pressure limits than the TKC. The weakest component in the assembled product determines the maximum design temperature and pressure limits.
- Marking : Each TKC Connection is marked with Heat No. for full lot traceability.
ASME BPE :
- Tri-Clamp Connections : according to ASME BPE
- Welding Flange Material : AISI 316L – 1.4404 | on request 1.4435 or other special steels |
- Locking Ring Material : AISI 316L – 1.4404
- Bolts and Nuts Material : AISI 304 – 1.4301
- Internal Surface Finish : Ra ≤ 0.5µm code 12 e.g.: TKC-AG015-12A
- Optional : For costumized TKC-A Connections, please contact us.
DIN 32676 :
- Tri-Clamp Connections : according to DIN 32676 - REIHE A
- Welding Flange Material : AISI 316L – 1.4404 | on request 1.4435 or other special steels |
- Locking Ring Material : AISI 316L – 1.4404
- Bolts and Nuts Material : AISI 304 – 1.4301
- Internal Surface Finish : Ra ≤ 0.5µm code 12 e.g.: TKC-CE015-12A
- Optional : For costumized TKC-C Connections, please contact us
ISO 2852 :
- Tri-Clamp Connections : according to ISO 2852 / DIN 32676 - REIHE B
- Welding Flange Material : AISI 316L – 1.4404 | on request 1.4435 or other special steels |
- Locking Ring Material : AISI 316L – 1.4404
- Bolts and Nuts Material : AISI 304 – 1.4301
- Internal Surface Finish : Ra ≤ 0.5µm code 12 e.g.: TKC-HC015-12A
- Optional : For costumized TKC-H Connections, please contact us
SMS 3008 :
- Tri-Clamp Connections : according to SMS 3008
- Welding Flange Material : AISI 316L – 1.4404 | on request 1.4435 or other special steels |
- Locking Ring Material : AISI 316L – 1.4404
- Bolts and Nuts Material : AISI 304 – 1.4301
- Internal Surface Finish : Ra ≤ 0.5µm code 12 e.g.: TKC-JE015-12A
- Optional : For costumized TKC-J Connections, please contact us.
