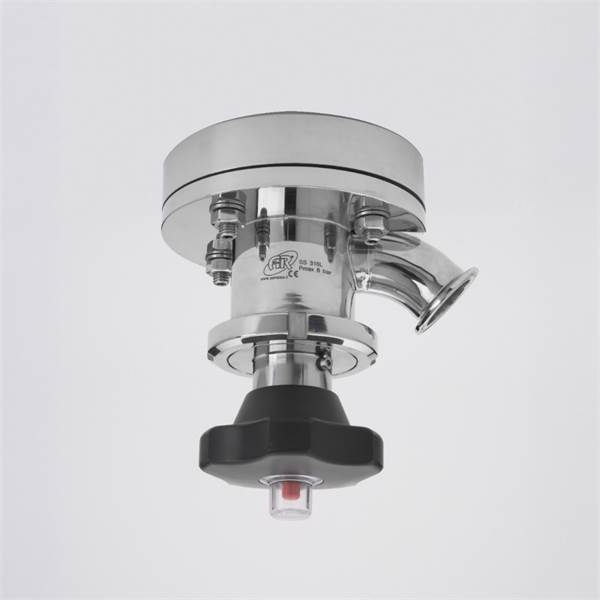

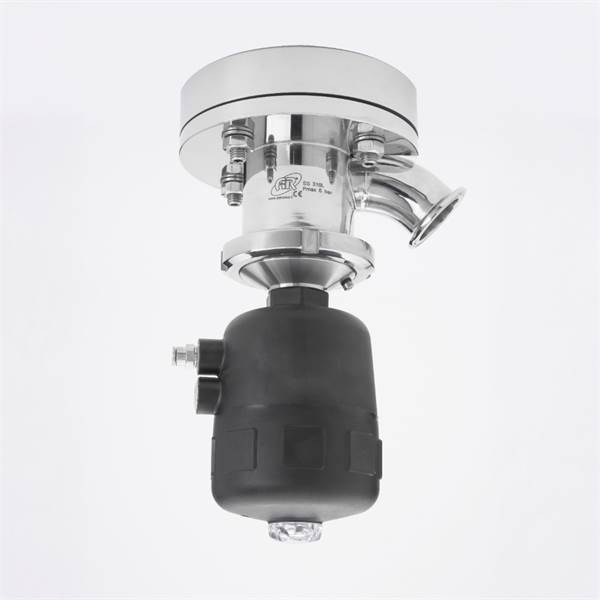

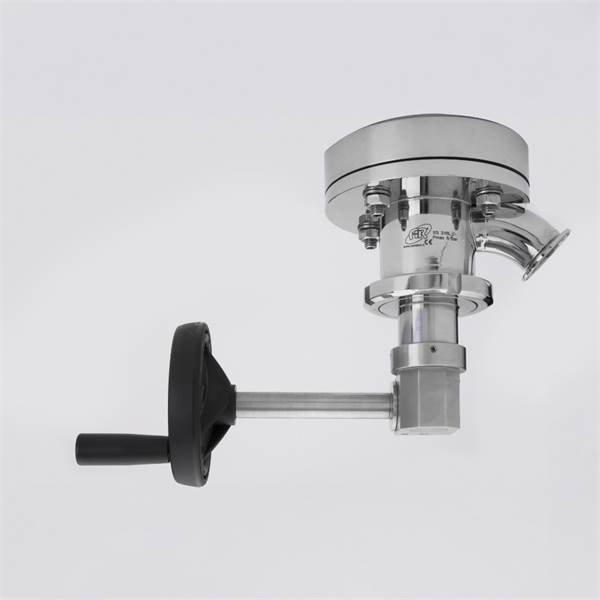

Tank Valve
The welding flange of the valve is conceived to be flush welded to the vessel bottom. With a sturdy design it is the ideal solution for high thickness tanks, guaranteeing also a simple and fast maintenance. Conceived to be completely cleanable and sterilizable; It also offers a wide range of optional and fully customizable according to project requirements.
- Simple and fast maintenance
- Removable solution
- Minimized dead leg
- Compact body
- CIP/SIP cleanable/sterilizable
- No product entrapment
- Minimized diaphragm’s stress, more reliability and lifespan
- Certified materials for Pharmaceutical use
- Full traceability
Designed for meeting the requirements of the tanks in the Pharmaceutical, Food & Beverage, Cosmetics, Dairy and Fine Chemicals industries. Our valves are suitable for direct installation on the bottom of tanks and preparation reactors for product discharge, with the best combination of hygienic design and flow optimization.
| Size range | 1” - 1” ½ - 2” - 3” - 4” - 6” |
| End connections | Tri-Clamp or butt weld dimensionally according to ASME BPE |
| Stainless steel in contact parts Material | AISI 316L - 1.4404 |
| Diaphragm Material | Modified PTFE Silicone (up to 2”) |
| Internal surface finish | From 1” to 2”: Vacuum ÷ 6 barg 3” and 4”: Vacuum ÷ 5 barg 6”: Vacuum ÷ 3.5 barg |
| Max working temperature | 150°C |
| Certifications | 3.1 material certificates (in contact) according to UNI EN 10204 FDA USP Class VI ATEX |
