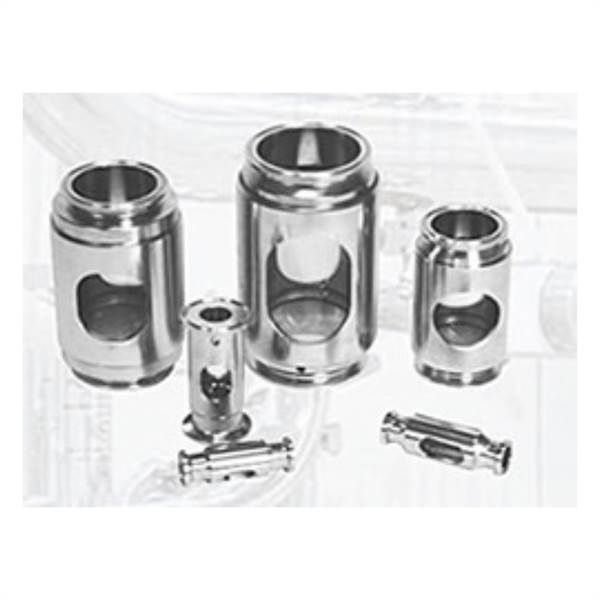

FVC - Flow-View

The Flo-View™ Sanitary Flow Indicators may be installed in any position to observe fluid flow in any direction. The sight flow indicator is usually employed to detect either the presence or absence of solutions, or to observe fluids for turbulence, color or clarity. The Flo-View™ Sanitary Flow Indicators are ideal for high purity applications!

Request for Quote
  • SIP/CIP
  • Sterilizable – Autoclavable
  • Stress, Crack and Shatter Resistant High Temperature and Pressure Resistant
  • Unique O-Ring Seal Design Minimizes
  • Bacteria Traps
  • Built-in Mechanical Stop – No Over Tightening of Glass Insert
  • Meets FDA and 3A Specifications
  • Full Material Traceability

Standard Material of Construction :

  • 316L SS
  • Optional: Hastelloy

Standard Gasket Material :

  • EPDM
  • Optional: Viton, FEP Jacketed

Insert Material :

  • Borosilicate

Maximum Temperature & Pressure Ratings :

    Borosilicate Insert
  • 100 PSI @ 250°F
  • 150 PSI @ 70°F

Finish, Product Contact Surface :

  • Ra ≤ 20 Micro Inch, 220 Grit EP
