Sterile Sampling Valves - VPA and VPAK
The VPA and VPAK Series Sterile Sampling Valves are designed for safe, aseptic sampling in hygienic process environments such as pharmaceuticals, biotechnology, and food production. Featuring a compact, easy-to-clean design, these valves support CIP/SIP procedures and ensure contamination-free sampling. The VPA is ideal for general sterile sampling, while the VPAK offers enhanced features for demanding applications.
- Radial Diaphragm (Silicone or Teflon)
- Flush Mounted
- CIP/ SIP
- Easy Disassembly
- Fully Autoclavable

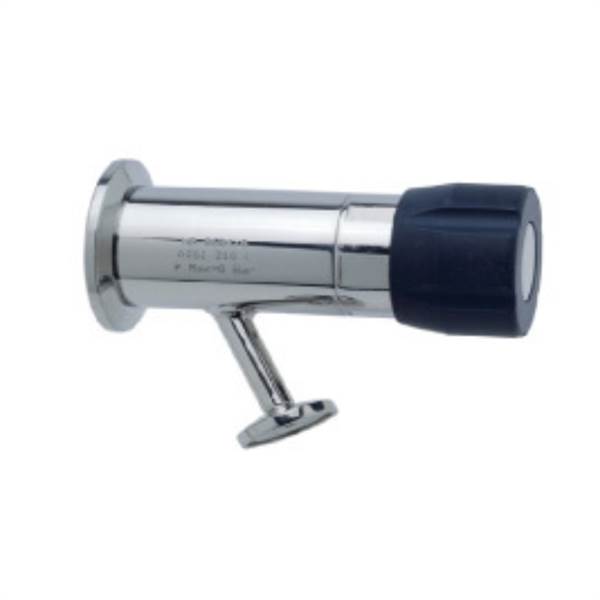

ASEPTIC SAMPLING VALVES – VPA Series
MATERIALS OF CONSTRUCTION :
- Body AISI 316L
- Cover AISI 316L
- Valve Stem AISI 316L
- Valve cone AISI 316L
- Radial Diaphragm – Silicone or PTFE
- Spring AISI 304
- Knob PTFE, autoclavable
OPERATING CONDITIONS :
- Pressure = max. 8 bar
- Temperature Range = -30°C to +150°C
- Flow = max. 1.200 lt/hr @ (2 bar)
SURFACE FINISHES :
- External Mirror Polish
- Internal Mechanical Polish 240 Grit

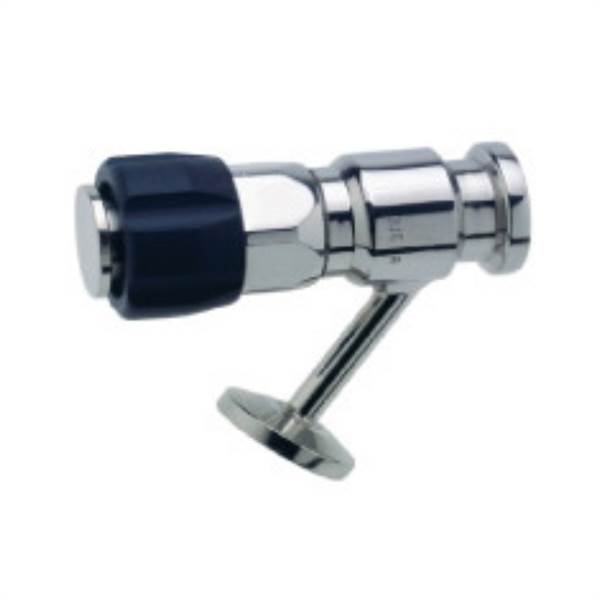

ASEPTIC SAMPLING VALVES – VPAK Series
MATERIALS OF CONSTRUCTION :
- Body AISI 316L
- Cover AISI 316L
- Valve Stem AISI 316L
- Valve cone AISI 316L
- Radial Diaphragm – Silicone or PTFE
- Spring AISI 304
- Knob PTFE, autoclavable
- Tube AISI 316L
OPERATING CONDITIONS :
- Pressure = max. 10 bar
- Temperature Range = -30°C to +150°C
- Flow = max. 400 lt/hr @ (2 bar)
SURFACE FINISHES :
- External Mirror Polish
- Internal Mechanical Polish 240 Grit
- Bioreactors/ Fermentors
- Sterile Holding Tanks
- Blood/ Plasma Processing
- WFI Storage
- Media Preparation
